Pneumag Magnetic Separator

Removes ferrous and para-magnetic contamination effectively from pneumatic process lines

  • Provides protection for lean/dilute phase conveying lines
  • Suitable for positive or negative pressure ±1 Bar
  • Includes a double row high intensity magnetic cartridge
  • Features an easy clean system to minimise downtime
  • Can be installed vertically, horizontally or on an incline / decline

Overview - Pneumag Magnetic Separator

Providing protection against ferrous and para-magnetic contamination of dry powders and granulates

The Pneumag unit contains a double row high intensity magnetic cartridge. It is secured into its housing by quick release toggle clamps, which ensure even pressure is generated around the unique silicon-based metal-detectable seal.

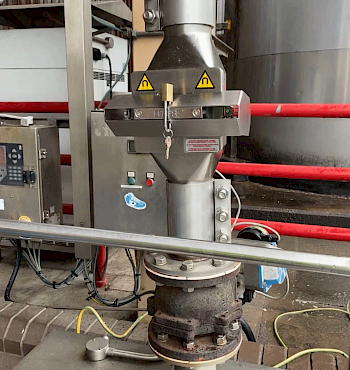

The Pneumag can be incorporated into any form of pneumatic conveying line, from lean to dense phase, and can be installed at any angle from vertical to horizontal. A common installation location is at tanker discharge to inspect incoming materials.


  • Suitable for dry powders and granulates
  • Pneumatic or blown feed conveying lines

Features /Benefits

  • Metal detectable seal
  • Tamper proof guard
  • Removes sub-micron sized contaminants


  • Magnetic Performance: 7000, 9000, 10000 (Easy clean), 11000 (Fixed) &  12000 (Fixed) Gauss
  • Performance Reading: on tube surface
  • Magnet Grade: N35 & N45 – Inspected and confirmed via hysterograph prior to use
  • Temperature: -20°C / +60°C
  • Pressure: + / - 1 Bar

Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeb)
Housing: 316 grade stainless steel
Tubing: 316 grade stainless steel
Other Parts: 316 grade stainless steel
Sealing: Metal detectable silicon rubber – Blue, FDA approved
Surface Finish: Brushed internally / Polished externally to 1.2μm

For pneumatic feed metal detection see GF4000
