Home /  Stock Magnets & Tools / Ceramic Shallow Pot Magnets with Hook

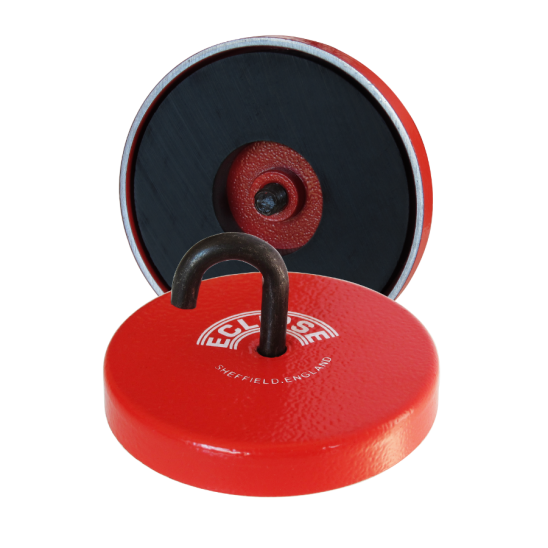

Ceramic Shallow Pot Magnet With Hook

Hover to zoom

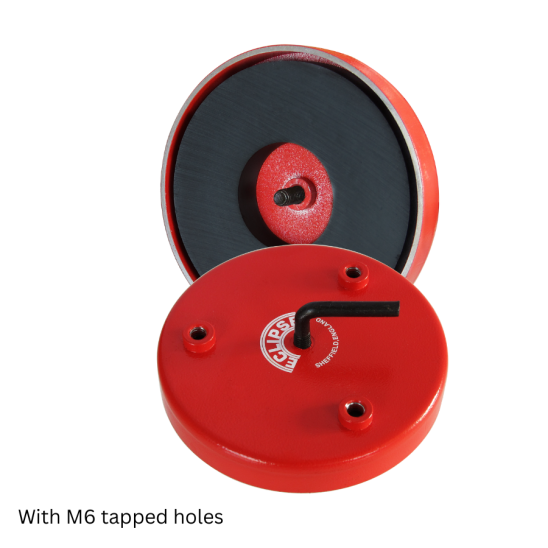

Ceramic Shallow Pot Magnet With Jack

Hover to zoom

Ceramic Shallow Pot Magnets with Hook

  • Max operating temperature 248°F (120°C)
  • Mild steel pot
  • With removable hook or removable jack option
  • Typical Applications: For height-restricted applications, light lifting, holding, securing and clamping
  • Part numbers E890, E891, E892 with hook
  • Part numbers E895, E896, E897 with jack
Get a quote

Model Variations

Product NumberDiameterThicknessThreadFixing Stud Centers PCD M6Pull ForceUnits Per Pack
E8901.811" (46mm)0.421" (10.7mm)M613.2lbs (6kg)5
E8912.205" (56mm)0.421" (10.7mm)M635.2lbs (16kg)5
E8922.598" (66mm)0.421" (10.7mm)M655lbs (25kg)5
E8952.598" (66mm)0.421" (10.7mm)M61.811"-3 holes (46mm-3 holes)55lbs (25kg)1
E8962.992" (76mm)0.492" (12.5mm)M61.811"-3 holes (46mm-3 holes)73lbs (33kg)1
E8973.397" (100mm)0.590" (15.5mm)M62.756"-3 holes (70mm-3 holes)121lbs (55kg)1
