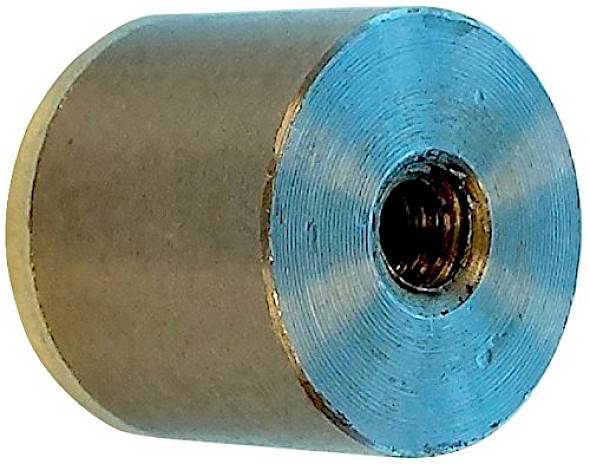

Alnico Pot Magnets
For gripping, lifting, and general securing applications
- For a wide range of applications
- Gripping, lifting, positioning jigs, soldering, general securing and fixing
- Suitable for temperatures up to 220°C (425°F)
- Wide range of size options available
Model Variations
| Product Number | Diameter | Length | Thread Size | Pull Force |
|---|---|---|---|---|
| M19169NK | 0.250" (6.35mm) | 0.500" (12.70mm) | No. 6 UNC | 0.2lbs (0.09kg) |
| M19170NK | 0.250" (6.35mm) | 0.750" (19.05mm) | No. 6 UNC | 0.3lbs (0.14kg) |
| M19171NK | 0.250" (6.35mm) | 1.000" (25.40mm) | No. 6 UNC | 0.4lbs (0.18kg) |
| M19172NK | 0.375" (9.53mm) | 0.500" (12.70mm) | No. 6 UNC | 1.4lbs (0.64kg) |
| M19173NK | 0.375" (9.53mm) | 0.750" (19.05mm) | No. 6 UNC | 1.5lbs (0.68kg) |
| M19174NK | 0.375" (9.53mm) | 1.00" (25.40mm) | No. 6 UNC | 1.7lbs (0.77kg) |
| M19175NK | 0.500" (12.70mm) | 0.500" (12.70mm) | No. 6 UNC | 2.5lbs (1.13kg) |
| M19176NK | 0.500" (12.70mm) | 0.750" (19.05mm) | No. 6 UNC | 3.0lbs (1.36kg) |
| M19177NK | 0.500" (12.70mm) | 1.000" (25.40mm) | No. 6 UNC | 3.0lbs (1.36kg) |
| M19178NK | 0.625" (15.88mm) | 0.500" (12.70mm) | No. 10 UNC | 2.3lbs (1.04kg) |
| M19179NK | 0.625" (15.88mm) | 0.750" (19.50mm) | No. 10 UNC | 4.0lbs (1.81kg) |
| M19180NK | 0.625" (15.88mm) | 0.750" (19.50mm) | No. 10 UNC | 4.0lbs (1.81kg) |
| M19181NK | 0.750" (19.05mm) | 0.500" (12.70mm) | No. 10 UNC | 5.0lbs (2.27kg) |
| M19182NK | 0.750" (19.05mm) | 0.750" (19.05mm) | No. 10 UNC | 9.0lbs (4.08kg) |
| M19183NK | 0.750" (19.05mm) | 1.000" (25.40mm) | No. 10 UNC | 9.0lbs (4.08kg) |
| M19184NK | 1.000" (25.40mm) | 0.500" (12.70mm) | No. 1/4" UNC | 7.0lbs (3.18kg) |
| M19185NK | 1.000" (25.40mm) | 0.750" (19.50mm) | No. 1/4" UNC | 14.0lbs (6.35kg) |
| M19186NK | 1.000" (25.40mm) | 1.000" (25.40mm) | No. 1/4" UNC | 16.0lbs (7.26kg) |
| M19187NK | 1.250" (31.75mm) | 0.500" (12.70mm) | No. 1/4" UNC | 6.0lbs (2.72kg) |
| M19188NK | 1.250" (31.75mm) | 0.750" (19.05mm) | No. 1/4" UNC | 15.0lbs (6.80kg) |
| M19189NK | 1.250" (31.75mm) | 1.000" (25.40mm) | No. 1/4" UNC | 22.0lbs (9.98kg) |
| M19190NK | 1.250" (31.75mm) | 1.250" (31.75mm) | No. 1/4" UNC | 25.0lbs (11.34kg) |
